1. API security

1.1. Introduction

According to Gartner, by 2022 API abuses will be the most frequent attack vector for enterprise web application data breaches. As such, securing Representative State Transfer (RESTful) APIs is fundamental to the success of any API strategy or implementation. Any approach should include the following 3 key areas:

• domain of consideration
• domain of control
• identity[Footnote 1]-centric and holistic view.

1.1.1. Domain of consideration

Developing and securing RESTful APIs is more than just applying standards, it is a framework and state of mind that has to be understood and followed jointly by the business owners, IT architects and developers.

The API security framework must be defined at the organisation and business level and should always consider who, how and what users and applications (both internal and external to an organisation) will interact with the APIs. These considerations should be defined at the beginning of any project and driven from a desired business outcome — for example, provide real time information for the public about the closest location and address of a general practitioner.

1.1.2. Domain of control

The domain of control contains the components that need to be developed and deployed, and they need to work together to provide API security to support:

• registered application developer access to the API
• authenticated and authorised consuming application access to the API or events
• protected communication between the API, the event broker and the consuming application to ensure confidentiality and integrity
• the ability for applications to act on behalf of a customer.

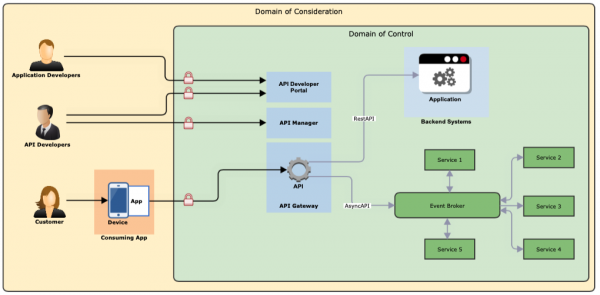

Figure 1 illustrates these domains of consideration and control working together to provide API security.

Detailed description of figure

Figure 1 illustrates the domains of consideration and control working together to provide API security.

Within the domain of consideration:

• application developers provide authentication to access the API developer portal
• API developers provide authentication to access the API developer portal and API manager
• customers, through a consuming application (an application on a device), are authenticated and authorised to use the API.

The domain of control is a subset of the domain of consideration and contains the following components:

• API developer portal
• API manager
• API in the API gateway
• backend systems
• event broker and various services.

This is described in more detail in sections 1.1.1. and 1.1.2.

View larger image (PNG 87KB)

1.1.3. Identity-centric and holistic view

The security of APIs should not just be seen as a bounded solution, but needs to be seen from a holistic perspective. It needs to incorporate management and understanding of user identities across:

• enterprise security
• mobile security and application security
• API security.

For example, securing an API that is targeted for a mobile application is not just about applying an OAuth (Open Authorization) profile, it should take into consideration how mobile devices and applications are managed and secured and how the enterprise security framework (for example, authentication) can be leveraged.

People- or user-centric security frameworks are key to defining the required access policies and controls for APIs. The management of identity (this includes users, device, servers and applications) should be central to any API security framework.

Detailed description of figure

Figure 2 is a Venn diagram with 3 intersecting circles representing:

• mobile security and application security
• API security
• enterprise security.

These intersect in the middle representing identity, which is central to an API security framework.

1.2. Definitions for APIs covered in these guidelines

This version of the API guidelines expands its remit to beyond REST APIs to include the additional API types: GraphQL, AsyncAPI and gRPC.

These additional types of API are covered in Part C: API development 2022, but from a high-level perspective the following definitions apply to all 4 API types.

Authentication

The process of verifying the identity of a customer (or device) who presents identity credentials and authentication keys.

Authentication authority

A system entity that provides authentication services to ensure only permitted customers (or devices) gain access.

Authorisation

The process of verifying that a customer (or device) has the right to perform an action and what they are allowed to access.

Availability

The ability to minimise API downtime by implementing threat protection.

Confidentiality

The ability to ensure information that is sent between users, applications and servers is only visible to those authorised to use it.

Consent management

The process that manages the collection of user data, ensuring that the required policies are applied, and the required consent has been obtained from the user, allowing the user to understand how the data is used and to be able to opt out if required. This is being driven by many global privacy laws.

Delegation

When a user authorises another user (or device) to serve as his or her representative for a particular task.

Delegated authorisation

A framework that defines how an owner of a set of resources can grant access (delegate) to a designated user or consuming application to perform actions on some of those resources on the owner’s behalf, but without sharing their credentials.

Federation

The process that allows for the leverage and reuse of identity credentials to multiple authentication authorities for authentication and / or Single Sign-On (SSO).

Integrity

The ability to ensure that information received has not been modified by a third party, also providing non-repudiation services

Provisioning

The automated or manual service for aggregating and correlating identity data resulting in the creation of user (IT) accounts and the delivery of user metadata used by systems to define access policies and controls for services.

Threat protection

The service for protecting APIs (at the ingress and egress points of an organisation) from known threats (for example, OWASP (Open Web Application Security Project) Top Ten) by preventing misuse or loss of availability.

Note: Threat protection should also be addressed at the operating system hardening level and should be an integral part of the API software development.

User-Managed Access (UMA)

Developed to provide a user data delegation model that enables a resource owner to control the authorisation of data sharing and other protected-resource access made between online services on the owner’s behalf or with the owner’s authorisation by an autonomous requesting party.

Zero Trust (ZT)

An evolving set of cybersecurity paradigms that move network defences from static, network-based perimeters to focus on users, assets and resources. A Zero Trust Architecture (ZTA) uses ZT principles to plan enterprise infrastructure and workflows. ZT assumes there is no implicit trust granted to assets or user accounts based solely on their physical or network location.

1.3. Risks

APIs are another channel into an organisation’s resources and information. Most organisations are accustomed to exposing a web interface, with good control over what information is released via that interface.

APIs offer direct, machine-to-machine access to resources and information, which makes it less obvious when information is incorrectly exposed. It becomes increasingly important for internal business stakeholders to decide what information and resources should be released via this channel, and to whom.

The security risks that APIs introduce will be similar to the traditional risks experienced on any web channel (web sites and web applications), except that there:

• is an increased attack surface due to more ways in, multiple services to potentially exploit
• is a risk of inadvertently exposing backend data, backend architecture and backend applications
• is potential for greater consequences if your API is compromised or hijacked and serves up malicious payloads to consumers
• are greater privacy concerns where APIs involve personally identifiable information
• are risks of malware in uploaded files due to performance overhead or lack of inline scanning
• is a risk of malformed APIs that are developed with limited security validation and inappropriate security validation
• is a risk related to cloud- and container-based systems where security best practices are not applied.

Risks posed by APIs include loss of integrity, confidentiality, and availability of data, for example:

• loopholes retrieving API resources may offer access to more information than was intended (especially if fields requested are built straight into a database (DB) query)
• write operations offer a means of polluting data stores, feeding misinformation into a system
• write operations could be used to form a Denial of Service (DoS) attack by overloading the server or data store
• use of wildcards in search fields can shut down APIs and backend applications
• cross-site scripting attacks made possible by consuming applications not checking user inputs
• Structured Query Language (SQL) injection into consuming applications that cause database damage at the API backend
• parameter attacks such as Hyper Text Transfer Protocol (HTTP) Parameter Pollution (HPP)
• man-in-the-middle attacks, modifying API requests or responses leading to data eavesdropping or misinformation insertion
• subverting authentication or authorisation mechanisms to spoof messages from legitimate consumers
• credential leakage or stealing authentication tokens to obtain information illicitly
• system information leakage through API error messages revealing details about an API’s construction or underlying system makeup
• broken session IDs, keys and authentication create exposure to unauthorised access through authentication factors that are not functioning because of poor security design or technology bugs
• other broken resource identifiers, authentication and authorisation mechanisms, allowing attackers to exploit flaws to obtain access, either temporarily or permanently
• exposing too much information through the use of generic resource APIs rather than specialising APIs for each specific circumstance.

1.3.1. Mitigation approach

API risks need to be mitigated in a number of ways. There is no single off-the-shelf security solution that can be dropped in to address all aspects of API security. APIs need to be secure by design — security needs to be built in from scratch and be considered within the context of existing protection mechanisms. The main areas that API security covers are:

• identity and access management to provide:
  • authentication
  • authorisation and delegated authority
  • federation
• confidentiality
• integrity
• availability and threat detection
• logging, alerting and incident management.

This ensures that:

• the consuming application is known and can only get access to API resources they are allowed to
• message content has not been tampered with between consumer and provider
• resources are reliably from the provider intended when the consuming application made the request
• the API will be available when needed, and not brought down by attacks from malicious consuming applications.

In order to address API security risks, a security framework is needed that encapsulates all these aspects of security.

1.3.2. Zero Trust and decoupled environments

The Zero Trust Network Access (ZTNA) model has been talked about for a number of years. In the current environment it is now seen by many analysts as the direction organisations need to take. This section highlights areas of the model that can help mitigate risks related to APIs.

ZT architecture removed the concept of trusted internal and untrusted external networks and focuses on the policy of ‘never trust always verify’.

The selection of cloud services has changed this security model to one where all actors (employees, partners, and so on) require access controls no matter where they are coming from or on.

ZT is seen as an architecture that is critical for organisations moving towards decoupled microservices and API architectures.

Microservices architectures are the backbone of many API services offered by organisations and have embraced the concepts of identity and how permissions are created and enforced between different services.

Every microservice requires an identity that can be confirmed, and the required permissions and policies applied that should be based on attributes and contextual access.

Some of the areas that need to be considered by an organisation when planning their implementation of ZT include:

• applying strong identification and authentication
• building a digital trust model that is dynamic, and trust is only valid for the current session
• constant evaluation
• always authenticate
• applying contextual authorisation (attributes, consent, location, time, behaviour)
• building in a digital risk capability that maps to a level of confidence and constantly re-evaluates
• leveraging identity and access management capability from identity proofing to adaptive authentication
• incorporating endpoint security
• transaction-level verification and continuous session validation
• ensuring data security is applied with reference to encryption and user privacy controls including consent management
• implementing strong auditing, logging, event reporting and forensics providing insight and behavioural patterns
• smart threat detection with machine learning
• injecting identity context into the API traffic (user, application, device)
• using JWT (JavaScript Object Notation (JSON) Web Token) to provide secure and validated claims, which can also be encrypted
• applying fine-grained access at the egress point, allowing the enforcement point to allow, block filter or modify the response
• identifying propagation to backend services to make decisions
• JWTs limiting chatter in microservice environments
• all APIs should be secured and treated as if they are public APIs.

1.4. Security reference architecture

This section describes an API security reference architecture and its component parts to inform the construction of an API security framework. It is important to note that REST, gRPC, GraphQL and AsyncAPI are different architectural models for building synchronous and asynchronous APIs that can leverage the security controls (for example, OAuth 2.0 and OpenID Connect) defined in these guidelines, but they all have their own intrinsic security models (for example, throttling consideration in GraphQL) which are not covered in these guidelines.

1.4.1. Actors and security functional capabilities

Identity and access management defines the actors (users and devices) who interact with system components that manage and expose APIs. Figure 3 shows a typical model of API components (support stack) and actors. The actors and components are described in tables 1 and 2.

Detailed description of figure

Figure 3 illustrates a typical model of API security reference architecture.

The API components (support stack) are in the middle of the diagram and include the:

• API developer portal
• API manager
• API gateway
• event broker
• API documentation
• API monitoring and analytics
• credential stores (identity and key stores).

These core components are described in more detail in section 1.4.1. and in table 2.

In the right of the diagram, the following internal actors feed into the support stack:

• internal application developers
• internal API developers
• business owners and security.

In the left of the diagram, the following external actors access the support stack:

• customers — using consuming applications on devices, such as web browsers, mobile devices and servers, to access an API
• consuming application developers.

The internal and external actors, and devices are described in more detail in section 1.4.1. and table 1.

View larger image (PNG 506KB)

The components defined remain valid no matter what API architecture (internal, cloud, hybrid) is implemented.

The core components of an API security framework (the development portal, manager and gateway) provide a grouping of functionality. These functions can be delivered with discrete applications, or bespoke code development, via commercial off-the-shelf (COTS) products or through leveraging existing devices that can be configured to provide these functions or services.

Table 2 lists the functions of a mature API delivery and security framework for an agency that is working with the development community. Together, these functions provide full support for the application developer building and developing consuming applications that will use the APIs exposed by the agency.

Depending on the requirements of the agency, some of these functions might not be required — for example, if the agency API exposed is purely for public consumption and only allows consuming applications to read information, then only a solution for enforcing threat protection (for example, DoS) might be required, and this could be delivered using an existing service protection capability.

Figure 4 shows how the model can also be split with the API support stack duplicated — 1 set to support internal API usage and 1 set to support external use.

Detailed description of figure

Figure 4 shows a variation on the typical model of API components and actors shown in figure 3. It has the same API components and actors as described in figure 3, but the API support stack (API developer, manager and gateway) is duplicated — 1 set supports internal API users (internal API developers and application developers who are in-house and within the support stack) and 1 set supports external users (actors and devices).

View larger image (PNG 216KB)

Authentication, authorisation, confidentiality, integrity and availability can be applied across the components in the support stack, depending on component capabilities.

The actual configuration and location of the API functional capabilities will vary depending on individual circumstances (for example, some capabilities may be internal, some may be in the cloud, where API development is outsourced then an ‘internal’ functional stack may belong to the outsourcer, and so on). Also, some components might not be required or can be developed in-house.

1.5. Building secure APIs

Building in security starts from the ground up, so development of APIs needs to be done with awareness of the API security risks associated with the resources and information being exposed, and with appropriate mitigations in place for these API security risks.

When developing an API it is advisable to carefully consider potential malicious use, especially:

• PUTs and POSTs — which change internal data and could be used to attack or misinform
• DELETEs — which could be used to remove the contents of an internal resource repository.

Standard secure coding practices are always recommended, in line with New Zealand Information Security Manual (NZISM) guidance.

Security by Design Principles according to OWASP — patchstack

But API development should take special note of:

• design-driven development (refer to Part C: API development 2022)
• OWASP Top Ten — OWASP: a summary of the standard attacks and mitigations
• REST Security Cheat Sheet — OWASP: REST-specific risks and how to prevent them — for example, input validation
• OWASP API Security Project — OWASP: top 10 API-specific risks and how to prevent them.

The OWASP Cheat Sheet Series provides cheat sheets on a variety of security-related subjects.

OWASP Cheat Sheet Series — OWASP

It is worth reviewing them to see if others may apply to your specific circumstances. Special note should be taken of the following where your API accepts input values as parameters:

• OWASP Input Validation Cheat Sheet — OWASP: a summary of input risks and mitigations
• OWASP Cross-Site Scripting Prevention Cheat Sheet — OWASP: how to escape inputs to prevent cross-site scripting
• OWASP SQL Injection Prevention Cheat Sheet — OWASP: ensuring database queries are built internally
• OWASP Query Parameterization Cheat Sheet — OWASP: examples of SQL injection and stored procedure vulnerabilities.

It is also recommended that a security testing capability be incorporated into the development cycle that provides continuous, repeatable and automated tests to find security vulnerabilities in APIs and web applications during development and testing.

1.5.1. API security design principles

The following key principles should be applied when designing API security frameworks.

1. Design with the objective that the API will eventually be accessible from the public internet, even if there are no plans to do so at the moment.
2. Security first — build security into the API when being developed.
3. Use a common authentication and authorisation pattern, preferably based on existing security components: avoid creating a bespoke solution for each API.
4. Least privilege — access and authorisation should be assigned to API consumers based on the minimal amount of access they need to carry out the functions required, and strong authentication and authorisation models are applied.
5. Maximise entropy (randomness) of security credentials by using API keys rather than username and passwords for API authorisation, as API keys provide an attack surface that is more challenging for potential attackers.
6. Balance performance with security with reference to key life times and encryption / decryption overheads.
7. Manage the exposure and lifetime of all APIs, and ensure all organisation APIs are covered by proactive scanning.
8. Validate the content of all incoming messages, ensuring communications are secured (in other words, encrypted) and apply threat protection policies (for example, injection and throttling).

2. Usage patterns

Different API usage patterns require different authentication and authorisation models.

2.1. Pattern 1: Internal use only

In pattern 1, an API is developed for internal use only by agency applications or systems.

Figure 5 shows there is the need to authenticate and authorise the internal user to the internal consuming application, and implement protection between the internal application and the API on the API gateway, which interacts with the backend application.

2.2. Pattern 2: Identifying an application developer

When an API is released for external use, the first interaction will be with application developers who want to try the API out. This will normally be via the API developer portal.

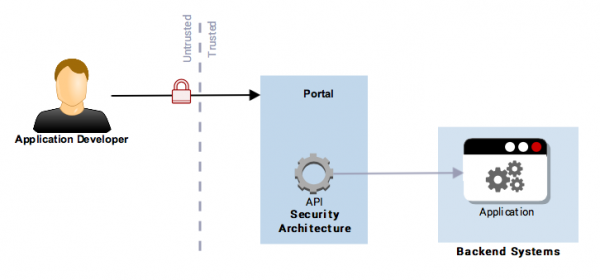

Figure 6 shows that the application developer needs to be authenticated to the API developer portal to register their new application and attain the relevant credentials, which are used to secure interactions with the new application during development. The developer has to agree to the conditions of use, and subsequent usage of the API can then be traced via the API keys (see pattern 4: identifying a consuming application).

2.3. Pattern 3: Anonymous consuming application

Pattern 3 applies when the API provider does not need to know which consuming applications are using their APIs.

Figure 7 shows a web application (the consuming application) on a web browser is unidentified (for example, has no API key) but can still use the API.

2.4. Pattern 4: Identifying a consuming application

Pattern 4 applies when the API provider needs to know which consuming applications are using their APIs (for communication, logging and analytics purposes).

Figure 8 shows a web application (the consuming application) on a web browser is authenticated (for example, has an API key, client secret, and so on) to use the API, but this is only used as a means of identification or registration.

2.5. Pattern 5: Authorising a system-to-system interaction (B2B)

The system-to-system model is where an API is being used to enable information sharing or integration with an external system — for example, a partner agency gaining access to supporting information.

Figure 9 shows an external application (the consuming system) needs to be authenticated to access the API.

In this model the aim is to ensure that only the correct consuming system has access to the API, and that the API is protected from malicious use. Business to business (B2B) models often carry sensitive information, so the consuming system needs to be authenticated to the provider for authorised access, confidentiality and integrity.

2.6. Pattern 6: Authorising a consuming application

Pattern 6 covers the case where different external consuming applications may be granted different levels of access to resources. The application’s access is not dependent on which customer is currently using the application, but on which application is using the API, for example, perhaps the developer for Application A pays a fee so Application A gets a different quality of service from the API than Application B.

Figure 10 shows 2 consuming applications, an application on a smartphone (consuming app A) and a web application on a web browser (consuming app B). Both consuming applications must be authenticated and authorised before accessing the API. This is normally enforced at the API gateway.

2.7. Pattern 7: Authorising a customer (delegated authority)

In pattern 7, external consuming applications may be granted different access to resources depending on which customer is currently using the application — for example, a learner authorises a mobile application to retrieve their own record of achievement.

View larger image (PNG 40KB)

Figure 11 shows the customer authenticates through the application (consuming application) on their smartphone device. The device and / or the application is already authorised to use the API. The customer logs in and authorises the device and / or application to access their information, for example, an internet banking application.

2.8. Pattern 8: Decoupled flow — Client Initiated Backchannel Authentication (CIBA)

In a traditional flow, the customer or end user is redirected to an authentication page. In pattern 8 and shown in figure 12, the authentication and consent process is delegated to an authentication device of the end user. This process is performed via a back channel with a request and response. This flow decouples the authentication device from the traditional flow. In this model the consuming application or client can initiate the authentication and consent of an end user via an out-of-band mechanism.

View larger image (PNG 129KB)

2.9. Quick reference

The following provides a quick reference to identify the most appropriate authentication and authorisation model to use for the patterns defined. The models are explained in detail in subsequent sections.

2.9.1. Pattern 1: Internal use only

The most appropriate authentication and authorisation models are:

• mutual TLS (certificates)
• vendor or internally developed API gateway capability — OAuth 2.0 grant types:
  • resource owner password credentials:
    • without OpenID Connect and without Proof of Key for Code Exchange (PKCE)
  • authorisation code:
    • without OpenID Connect and without PKCE — Recommended
      Response type: Code
    • without OpenID Connect and with PKCE — Recommended
      Response type: Code
    • with OpenID Connect and with PKCE — Recommended
      Response type: Code
• API gateway proprietary.

2.9.2. Pattern 2: Identifying an application developer

The recommended authentication and authorisation model is API gateway proprietary.

2.9.3. Pattern 3: Anonymous consuming application

The most appropriate authentication and authorisation model is API keys.

2.9.4. Pattern 4: Identifying a consuming application

The most appropriate authentication and authorisation models are:

• API keys — Recommended
• API gateway proprietary.

2.9.5. Pattern 5: Authorising a system-to-system interaction (B2B)

The most appropriate authentication and authorisation models are:

• mutual TLS (certificates)
• API keys
• vendor or internally developed API gateway capability — OAuth 2.0 grant types:
  • client credentials:
    • without OpenID Connect and without PKCE — Recommended
• API gateway proprietary.

2.9.6. Pattern 6: Authorising a consuming application

The most appropriate authentication and authorisation models are:

• API keys
• vendor or internally developed API gateway capability — OAuth 2.0 grant types:
  • client credentials:
    • without OpenID Connect and without PKCE — Recommended
• API gateway proprietary.

2.9.7. Pattern 7: Authorising a customer (delegated authority)

The most appropriate authentication and authorisation models are:

• API keys
• vendor or internally developed API gateway capability — OAuth 2.0 grant types:
  • resource owner password credentials:
    • without OpenID Connect and without PKCE
  • authorisation code:
    • without OpenID Connect and without PKCE — Recommended
      Response type: Code
    • without OpenID Connect and with PKCE — Recommended
      Response type: Code
    • with OpenID Connect and without PKCE — Recommended
      Response type: Code
    • with OpenID Connect and with PKCE — Recommended
      Response type: Code
  • Client Initiated Backchannel Authentication (CIBA):
    • with OpenID Connect and without PKCE — Recommended
• vendor or internally developed API gateway capability — OpenID Connect:
  • Hybrid:
    • with OpenID Connect and without PKCE
      Response type: Code_id token
    • with OpenID Connect and without PKCE
      Response type: Code token
    • with OpenID Connect and without PKCE
      Response type: Code id_token token
• API gateway proprietary.

2.9.8. Pattern 8: Decoupled flow (CIBA)

The recommended authentication and authorisation model is vendor or internally developed API gateway capability — OAuth 2.0 grant type: Client Initiated Backchannel Authentication (CIBA) with OpenID Connect and without PKCE.

The initial consideration for any API security framework should be to use the authorisation code grant type. The following are pointers for agencies when considering their requirements.

1. It is good practice to use API keys as the basis of all system-to-system authentication, such as consuming applications to API.
2. For pattern 6: authorising a consuming application, the client credentials grant type is recommended but the API keys model can be used instead.
3. For pattern 7: authorising a customer (delegated authority):
   • the authorisation code grant type is recommended where the customer is the resource owner, the provider (agency) controls the resource server, but the authorisation server is not owned by the provider or is elsewhere within the provider organisation
   • where there is a strong desire to not interrupt the customer’s experience with the consuming application, it is appropriate to use client initiated backchannel authentication
   • the resource owner password credentials grant type is appropriate where the customer is the resource owner, the provider (agency) controls the resource server, and the API gateway is the OAuth 2.0 authorisation server.
4. Using only API keys for customer authentication is not recommended and should be a last resort.
5. For pattern 1: internal use only, the authorisation code grant type is recommended, where practical. Otherwise, it may be appropriate to leverage the provider agency’s existing internal authentication and authorisation providers.
6. For pattern 2: identifying an application developer, it is appropriate to leverage (or build) the capabilities of the developer portal (for example, username and password).
7. Pattern 8: decoupled flow (CIBA) supports out-of-band authentication and consent approval. It is recommended for organisations that want to enable push notification for web-based services and applications.
8. The authorisation code grant type has been enhanced with Proof of Key for Code Exchange (PKCE) and addresses key security hacks. In OAuth 2.1 (draft) it is now recommended as a default option for authorisation code grant type.

3. API authentication and authorisation basics

Before looking at the technical solutions to API authentication and authorisation, this section describes the situations where authentication and authorisation are appropriate.

Authorisation and authentication are intrinsically linked inside the OAuth 2.0 framework, which in itself is regarded as synonymous with securing APIs. OAuth 2.0 uses its own terminology, which is worth becoming familiar with when adopting an OAuth 2.0 approach.

As the OAuth 2.0 framework is a commonly accepted approach to the securing of modern APIs (large companies like Google, Microsoft and Twitter use it), this section also covers an introduction to OAuth 2.0.

3.1. Authentication — Required

When securing APIs, authentication is required to identify the consumers and / or consuming applications that want to access or consume an API. Authentication enables the API provider to identify all consumers of an API and to confirm that the consumer requesting access is who they say they are. This does not automatically authorise them to access the APIs or the underlying resources.

Providers should define a registration process for each category of consumer, whether system or human.

The ability of knowing who is using an API cannot be overstated. This is critical when it comes time to implement aspects of the API service life cycle, such as service deprecation, or notification of an outage. It also enables the API provider to implement different service levels for different consumers. For example, commercial customers might have a higher request limit per day than customers not paying for the service.

Making application developers register for use of the API also means they must sign up to terms and conditions that define how they might use the data they get from the API, and that they agree to ensure that their consuming applications will behave in an acceptable and non-abusive manner.

3.1.1. Authentication techniques

Figure 13 lists the authentication techniques that can be used to secure APIs and Appendix B — Authentication provides guidance on when to use them.

Detailed description of figure

Figure 13 lists the following authentication techniques that can be used to secure APIs and where they are used:

• Developer authentication — used to log in to the API portal
• Anonymous — not recommended to use
• Multi-factor authentication:
  • User name and password — not recommended for public facing APIs, useful in development / training environments
  • API keys — recommended to use for all APIs, used for application authentication (not human)
  • Certificates — used for: consuming application (B2B only) to API gateway, OAuth 2.0 client to authorisation server, API gateway to backend  systems
  • OAuth2 and security tokens — recommended to use for internal and external production APIs
  • OpenID Connect — recommended to use where there is an OpenID Connect provider.

View larger image (PNG 165KB)

There is a second security token option that is built on Security Assertion Markup Language (SAML), but it is only recommended if SAML is already in place within a particular sector (for example education), otherwise SAML is seen as a deprecated model for REST APIs.

These guidelines do not cover the SAML option. For details on how SAML is used as an authentication token in OAuth 2:

SAML 2.0 Profile for OAuth 2.0 Client Authentication and Authorization Grants — Internet Engineering Task Force (IETF) Datatracker

3.2. OAuth 2.0 basics

OAuth 2.0 provides a more comprehensive and extensible approach to security than some of the basic authentication and authorisation mechanisms. Based on security tokens, it can be used for delegated authority such as enabling a mobile application to act on behalf of its user. For more details see Appendix C.

The IT industry perceives the need for any production quality API security framework to be based on OAuth 2.0. In reality OAuth 2.0 is a delegated authorisation framework, but it provides the foundations on which secure services can be built in order to provide the complete security solution.

OAuth 2.0 requires some fundamental security components in order to work, and has its own terminology for describing these components and their roles.

View larger image (PNG 45KB)

Figure 14 illustrates these components and their roles:

• Resource owner — the person who has the right to grant a third party (for example, a consuming application) access to a protected resource (for example, information about themselves). Quite often the resource owner is the customer.
• Client (or client application) — a consuming application requesting access to a protected resource on behalf of a third party for example, a mobile application on a user’s (third party) smartphone or a web application accessed via a browser.
• OAuth server / authorisation server provides a security token server / infrastructure for managing tokens. It is responsible for issuing:
  • authorisation (code) grant — approval tokens driven by resource owner approval
  • access tokens used by the API to authorise access
  • refresh tokens that allow new access tokens to be requested by the client and re-issued within a specified timeframe.
• Authentication server — this is not a component of OAuth 2.0, or defined by OAuth 2.0, but needs to be considered when defining a complete OAuth 2.0 framework. This could be a simple login capability or managed by an identity service provider.
• Resource server — this hosts the protected resources (APIs and backend applications) that only allow authenticated and authorised clients by:
  • checking the access token in each incoming API request
  • validating the access token against the authorisation server and the permitted access rights.

OAuth 2.0 comes with 4 types of grant flows (how client applications can gain access tokens), each appropriate to different situations and solution requirements:

• client credentials
• resource owner password credentials
• authorisation code
• implicit.

OAuth 2.0 is appropriate where there is a requirement for third party applications to access restricted resources. This should help mitigate the risks relating to:

• third-party applications storing user credentials (username and password)
• resource servers having to support user stores and password authentication
• resource owners not being able to define granular access to resources, including duration
• revoking credentials that are compromised.

The sections Resource-based scopes and Proof Key for Code Exchange (PKCE) are 2 additional concepts that should be clearly understood, and they provide additional security controls. Also, PKCE is seen as a security control that will be mandated in future versions of the OAuth 2 specification.

3.2.1. Resource-based scopes (for coarse-grained access)

Access and refresh tokens provide confirmation that the end user has consented to delegate access rights to the client. Resource-based scopes (scopes), which are linked to the access token, provide an additional level of authorisation, each one defining a specific capability, for example ‘read’ document or ‘write’ document.

Scopes are approved by the end user and enforced by the backend API. The authorisation server validates the token, which contains the scopes that have been consented to, and validates the client is not exceeding its access rights.

3.2.2. Proof Key for Code Exchange (PKCE)

The authorisation code grant type is regarded as the recommended solution for most scenarios and is regarded as one of the most secure options especially for server-side applications, where the final access token required to call the resource APIs is protected via an encrypted channel between the authorisation server and the client application (residing on a server).

To obtain the access token the client application makes an authorisation request to the authorisation server and if the required information is provided and approved, the authorisation server presents the client application with a code that is then used to request the access token over the secure back channel.

The back channel link is normally secured using Mutual Transport Layer Security (MTLS), but the initial flow to obtain the code token is over Transport Layer Security (TLS) and in certain architectures can be intercepted in a man-in-the-middle attack.

PKCE was developed specifically to address a man-in-the-middle attack, which is called the authorisation code interception attack, and in particular for mobile phone scenarios where malicious application (with elevated rights) could also be installed on the same mobile device as the client application and obtains the code, and with this then obtain the access token.

It works based on a random key (code verifier) that is generated, only known by the client and is used to create another random key, based on a hashing method, which is called the code challenge.

The challenge is sent (including the method) during the code flow and is stored by the authorisation server.

When the client requests the token with the code token, it also includes the original code verifier, which the authorisation server validates against the code challenge before the access token is returned to the client.

3.3. Basic OAuth 2.0 implementation patterns

There are 3 primary implementation patterns:

• distributed resource and authorisation servers
• client credential grant flow
• authorisation code grant flow.

View larger image (PNG 56KB)

Figure 15 shows that in the patterns ‘client credential grant flow’ and ‘authorisation code grant flow’, the resource server resides with the authorisation server. But OAuth 2.0 also supports a distributed model, if needed, where the resource server and authorisation server are separate.

By adding an authentication server component into the API security framework, a number of additional implementation models can be considered. The patterns in figure 15 have separate authentication servers, for example, external identity service providers, Google, RealMe and internal authorisation services.

There is a simpler security architecture shown in figure 16 where the authentication server is housed on the same system as the authorisation and resource servers.

View larger image (PNG 61KB)

3.3.1. Distributed model — User-Managed Access (UMA)

The distributed pattern models allow for multiple resource servers and authorisation servers and is addressed by User-Managed Access (UMA). UMA is a delegation access protocol allowing third parties to have temporary access to resources that are approved (consented to) by the resource owner. UMA is driven by the Kantara Initiative and currently has been put into production by a number of vendors.

• Kantara Initiative — Kantara
• Gluu
• ForgeRock
• wso2
• Keycloak

In figure 17, the resource owner has the ability to provide predefined policies that define the relationship and access controls for all their resources across multiple resource servers of what can be accessed and by whom (for example, minimise their interaction in the current OAuth approval process) and provides a central point of control.

A centralised UMA authorisation server then keeps track of all resource servers associated with a given resource owner.

Figure 17 shows an overview of UMA. The resource owner establishes a token-based trust relationship between the resource server and the authorisation server.

The resource owner also defines the access control policies that grant access to potential consumers. A client application, driven by the requesting party who is requesting access to resources owned by the resource owner, attempts to access a resource on a resource server but will be redirected to the UMA authorisation server.

The client application has to obtain a client key, client secret and access token from the UMA authorisation server before trying to get to the required resource on the resource server. The resource server will validate the access token and the permitted level of access with the authorisation server before allowing the client application to consume its required resources.

To support these interactions, the UMA authorisation server offers 2 APIs:

• protection API — used by resource servers for getting authorisation-request tokens and validating access tokens
• authorisation API — used by the client application to obtain a token for accessing a specific resource.

OAuth 2.0 provides a consent model that is driven via a synchronous process — UMA provides enhanced consent capability that is driven via asynchronous processes, which allows for:

• the sharing of information with parties and groups based on relationships
• managing requests from third parties
• monitoring shares across sources.

3.4. OpenID Connect

OpenID Connect is the recommended security profile for the use of OAuth 2.0 authentication security tokens when an API requires more secure authentication than offered solely by API keys — for example, when data is a 2-way flow between the consuming application and the API.

3.4.1. Basic principles

OpenID Connect is used to:

• enhance the process and user experience during the onboarding process
• provide a SSO capability
• secure transfer of user data
• enrich the user experience
• provide a trust framework [integrity] for service and identity providers to share consented user data.

During the authorisation token exchange process a level of authentication is required. The authentication process is limited to what authentication services the authorisation server can support. For example, the resource owner authorisation process is normally supported out of the box by the authorisation server, using username and password.

These authentication services can be enhanced with authentication security tokens by implementing the OpenID Connect OAuth profile. For customers and internal users this can be achieved using a brokered or federated identity service.

Federated identity in the context of API security provides the ability to re-use user identities in an SSO way by providing a trust relationship between the identity service provider (OpenID Connect service) and the authorisation server. This establishment of trust between the identity provider and authorisation server is normally established using certificates and mutual authentication. All communication must be over TLS / MTLS to provide confidentiality and integrity controls.

OpenID Connect runs on top of OAuth 2.0 and is a lightweight RESTful framework for identity service interaction, to provide authorisation services. It allows claims (or attributes) about a user to be shared in a secure manner from an identity provider to the client application with the explicit consent of the user.

OpenID Connect uses all the flows, grant types and endpoints exposed by OAuth 2.0, and it adds the following additional capabilities to provide access to the users claims / attributes:

• an ID token
• a Userinfo endpoint.

The ID token is a JSON Web Token (JWT) that contains authenticated user information (and attributes) that the authorisation (OAuth 2.0 server) / authentication server (OpenID Connect server) provides to the client application.

This token can then be used to enforce finer grained access controls by providing additional attributes that can be used by the authorisation server to apply these policies.

The ‘new’ JWT has to be signed in order to address confidentiality and integrity requirements. There are also additional parameters (relates to code, session and access token hashes) defined that have been added to help address replay attacks.

The Userinfo endpoint can be called with the required access token to also obtain the same claims / attribute (for example, first name) provided in the ID token.

To address the risk of forged or stolen assertions, it is recommended that all communication is over TLS and tokens are at a minimum signed for authentication.

3.4.2. OpenID Connect grant flows

OpenID Connect builds on the existing OAuth 2.0 grant flows, and once implemented it is enacted using a specific scope (openid) in the initial authorisation call that the client makes to the OpenID Connect service.

There are a number of additional scopes that OpenID Connect introduces (for example, profile) that detail specific attributes (for example, name) that can be presented in the ID token. So, for example a client might request the profile information, but it is the identity provider that details what this will provide (for example, first and last name, phone and email address) and this has to be consented (via the OAuth 2 consent process) to by the user.

The request call also includes a response type that allows the application developer to request identity information tokens and security tokens depending on what information they want back, the type of client (for example, server/ client based). The link provides an excellent summary of the response type possible with OpenID Connect.

Diagrams of All The OpenID Connect Flows — Takahiko Kawasaki

The ID token not only includes identity information, it also includes additional technical claims that allow the client application to verify that the ID token is valid and came from the identity provider. It is highly recommended that a client validates the ID token (for example, signature, client ID and issuer). The ID token can also be encrypted to enhance the confidentiality and integrity of the information presented.

OpenID Connect works with all the existing OAuth 2.0 grant types and adds additional security controls to the authorisation code grant flow, for the implicit flow in OAuth 2.0 — this is seen as a less secure flow than the authorisation flow and is now being discouraged. OpenID Connect provides a level of enhancement to the implicit flow as the nonce and state are returned in a signed JWT, but this is really only recommended in login-only use cases.

Finally there is the concept of a hybrid flow that uses the authentication code flow as a base and (depending on what is required by the client and what is enabled by the authorisation server) it allows additional tokens (ID tokens) to be issued during the flow. These are both used to provide secure identity information and also additional confidentiality and integrity controls relating to state, nonce values and hashes.

Hybrid Flow Steps — OpenID Connect

A good example of where the hybrid flow is being mandated is in the management of consent in the Open Banking Consumer Data Rights specifications — GitHub.

3.4.3. OpenID Connect patterns

In the first OpenID Connect pattern, detailed in figure 18, the authentication and authorisation servers are conceptually hosted on different physical servers (the OpenID Connect server can be internal or external to the organisation). The user connects to the web application and is redirected to the OpenID Connect server for authorisation.

Once authorised, the user is redirected to the web application which, in turn, exchanges the ID token for an access token.

A trusted link is set up between the OpenID Connect server and the OAuth server (authorisation server) that also allows additional identity information to be provided in a JWT format via the Userinfo endpoint. This is important as the token exchange can result in the loss of user data that is required to provide fine-grained access.

If the OpenID Connect server was external, it would be the API gateway that would be responsible for the interface and token exchange process.

The application has to exchange the ID token for an access token in this pattern.

View larger image (PNG 33KB)

In the second pattern, shown in figure 19, the OpenID Connect server is run on the same server as the OAuth authorisation server, so the ID token and the access token can be issued at the same time. In both models, the OpenID Connect server can use Lightweight Directory Access Protocol (LDAP) for its backend user store, to provide authorisation for internal users.

View larger image (PNG 27KB)

One other model is for an external OpenID Connect pattern, where the OpenID Connect server is an external identity provider (for example, all-of-government service) and the API gateway is responsible for managing the token exchange, potentially also housing the authorisation server.

3.4.4. Health Relationship Trust (HEART) Working Group

The OpenID Foundation uses working groups to focus on specific problems, technology or specific marketplace sectors like Financial-Grade APIs (FAPI) or the Health sector HEART Working group.

Current Working Groups — OpenID Foundation

Health Relationship Trust (HEART) defines a set of profiles that enables patients to control how, when, and with whom their clinical data is shared.

HEART Working Group — OpenID Foundation

It also defines the interoperable process for systems to exchange patient-authorised healthcare data consistent with open standards, specifically Fast Healthcare Interoperability Resources (FHIR), OAuth, OpenID Connect, and UMA.

Two pertinent specifications are:

• HEART Profile for User-Managed Access 2.0 — OpenID Foundation
• HEART Profile for Fast Healthcare Interoperability Resources (FHIR) UMA 2 Resources — OpenID Foundation

3.4.5. CIBA flow

The OpenID Connect CIBA flow is important because it adds 3 ‘decoupled’ authorisation flows. Instead of using redirects through the browser, this model allows a user’s mobile device to be decoupled from the flow and the client application, and act as an authentication device on which the user authentication and the consent confirmations are performed.

The important point here is the client application and authorisation application / service do not have to run on the same device (for example, smartphone) or be linked.

In the CIBA flow the initial authorisation call is made to the new (OAuth2) backchannel authentication endpoint, and the authorisation server then delegates the authentication and consent approval tasks to the authentication device (smartphone) of the user, who will accept or deny the request.

The access token being sent to the client is managed by one of 3 flows:

• Poll — the client polls the authorisation server until the authorisation server has received the approval from the authentication device
• Ping — the client waits until it is notified by the authorisation server and then it requests the token
• Push — the authorisation server, when it receives approval from the authentication device, pushes the access, ID token and refresh token to the client.

3.5. Authorisation

Authorisation is the act of performing access control on a resource. Authorisation does not just cover the enforcement of access controls, but also the definition of those controls. This includes the access rules and policies, which should define the required level of access agreeable to both provider and consuming application. The foundation of access control is a provider granting or denying a consuming application and / or consumer access to a resource to a certain level of granularity.

In the authentication section the concepts of OAuth were introduced, and a number of authentication patterns were defined. This section focuses on authorisation and provides additional patterns that work with OAuth or provides an alternative.

3.5.1. Authorisation techniques

Authentication on its own does not necessarily provide permissions to access an API or application. It merely validates that you are who you say you are. If it is used for access control, it is an all or nothing control mechanism (for example, administration account).

Once a user is authenticated (for example, using username and password), an authorisation process will grant (or deny) them the right to perform an action or access to information. Normally this authorisation process is applied using either a coarse-grained or fine-grained access control process.

The normal model is to provide coarse-grained access at the API or API gateway request point, and fine-grained control at the backend services, but this model is changing as backend systems become more modular (for example, microservices) and less monolithic. This will result in a need for fine-grained authorisation support at the request point. The API gateway will support either using OAuth 2.0 or its own proprietary capability.

The 2 types of authorisation that are covered are:

• role-based or group-based authorisation — where membership in a role or group determines access rights for the consumer
• policy-based or attribute-based authorisation — where characteristics of the consumer are evaluated to determine access rights for the consumer.

Detailed description of figure

Figure 20 lists the following 2 authorisation techniques that grant users the right to perform an action or access to information, via an API gateway, and where these are used:

• Groups / roles based — recommended for internal-facing APIs and could be used for external-facing APIs
• Policy / attribute based (using OAuth 2.0) — recommended for internal- and external-facing APIs.

These authorisation techniques are described in more detail in sections 3.5.2. to 3.5.4.

View larger image (PNG 20KB)

3.5.2. Roles-based access controls (RBAC)

In many organisations Active Directory (AD) provides the authentication services for users. AD groups are then used to provide authorisation. This is classed as Discretionary Access Control (DAC) — access to systems is granted by applying Access Control Lists (ACLs) directly to the user, or to the groups in which users reside.

AD (or LDAP) groups are synonymous with roles and can be used to provide coarse-grained authorisation for APIs.

3.5.2.1. Scopes (limited fine-grained access)

Based on the services (APIs) that are exposed, additional access controls can be applied using scopes. For example, a data service might provide ‘read’ and ‘write’ scopes that could be granted to a user based on the AD groups they were in.

When the ‘authorisation code’ token is passed to the authorisation server a scope parameter is included to define what scopes the client can use. Scopes can be used to limit the authorisation granted to the client by the resource owner. These scopes are defined by the client application developer. This is an important consideration as it can impact how the API service is defined, for example, single service with multiple scopes or multiple services with single scopes. The developer has to ensure that the minimum privileges are granted to client applications to carry out the tasks (exposed by the client application and APIs) the user wishes the application to complete.

Scopes provide a level of coarse-/or fine-grained access and represent specific access rights, for example, the ability to read a document or write a new document (or both) is limited by the access token.

Scopes can be used alone to define coarse- or fine-grained access, but these scopes need to be defined and built into the client application / API being built. Consideration is needed to understand, for example, if:

• a single scope protects the service
• scopes are defined to protect fine-grained business functionality
• services should be divided into many smaller services with one scope each.

Once the token is issued to a client application, the access rights bound by the scope are encapsulated in the access token for the length of its validation period.

A client application may invite a user to authorise the application to act on behalf of the user. Using NZ Business Number (NZBN) as an example, the client application (an accounting application for example) may invite a user to authorise the client application to update primary business data on the user’s behalf. The application may ask “Do you want [client application] to be able to update your business information on the NZBN Directory?”.

Assuming the user grants the client application this privilege, the authorisation token returned by the API will have a scope that enables update access. This scope is represented by an identifier.

3.5.3. Attribute-based access controls

Attribute-based Access Control (ABAC) defines an access control process whereby access is granted based on policies that are built using attributes, for example, a policy might state that access to a specified resource is only permitted for users who are in sales or marketing, who are managers, during office hours only. ABAC provides fine-grained authorisation services.

The really important control that ABAC provides is the ability to provide context when applying access controls, for example, access decisions can be based on the IP address of the device, the operating system of the client and the last known transactions of a client.

The recognised standard for ABAC is eXtensible Access Control Markup Language (XACML), which is based on Extensible Markup Language (XML).

3.5.4. API gateway

API gateways have been mentioned previously in the context of API protection. Most API gateways on the market provide support for OAuth 2.0 and can also provide authorisation (and authentication) services via a direct connection to:

• an identity store containing groups
• an identity access management system
• a policy server.

Detailed description of figure

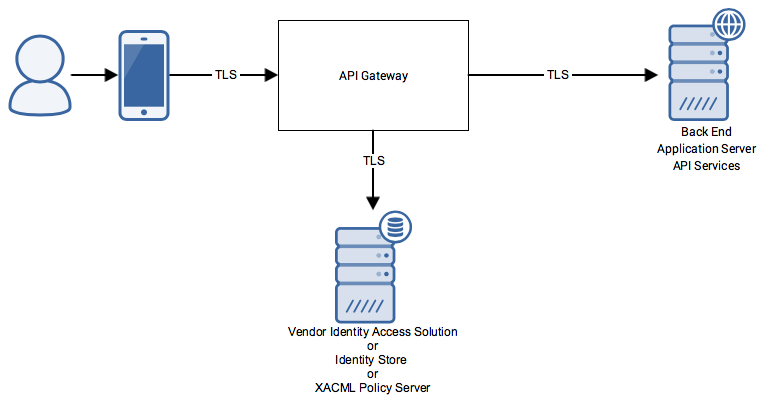

Figure 21 illustrates an API gateway providing authorisation to a customer (using an application on their smartphone) to gain access to backend services, via a direct connection over Transport Layer Security (TLS) to:

• a vendor identify access solution, or
• an identity store, or
• an eXtensible Access Control Markup Language (XACML) policy server.

View larger image (PNG 31KB)

4. Security controls

This section looks at additional controls that should be considered and implemented when protecting APIs.

The 5 areas that should be considered are:

1. Confidentiality
2. Integrity
3. Availability
4. Threat protection
5. Logging and auditing.

Depending on the classification of the information that is presented in the APIs and the risk framework applied, different access controls will need to be applied.

Appendix F provides more detail about the security controls that can be applied.

4.1. Confidentiality and integrity

Confidentiality and integrity cover the handling of request and response data, both in transit and at rest. The aim is to protect the payload content from unauthorised access, manipulation or faking. An API request needs to be received intact by the API, with validation as to the source of the request. Untampered API responses need to be received by the consuming application, with confirmation that they are legitimately from the API.

4.2. Availability and threat protection

Availability in this context covers threat protection to minimise API downtime, looks at how threats against exposed APIs can be mitigated using basic design principles and how to apply protection against specific risks and threats.

Availability also covers scaling to meet demand and ensuring the hosting environments are stable. These levels of availability are addressed across the hardware and software stacks that support the delivery of APIs.

There are no specific standards for availability, but availability is normally addressed under business continuity and disaster recovery standards. These standards recommend a risk assessment approach to define the availability requirements. Find further information on business continuity and risks on the Standards New Zealand website.

For cloud services, Digital.govt.nz provides an assessment tool that includes a risk assessment tool which covers availability, business continuity and disaster recovery related questions.

Cloud services

As mentioned in  section 1.3. Risks, there are various types of risk that impact APIs. This includes threats to availability as well as confidentiality and integrity. Many threats can be mitigated as indicated in section 1.3.1. Mitigation approach and good secure coding practices using OWASP guidelines.

Where the resources being exposed by an API are sensitive — for example, not public data — it is advisable to perform:

• threat assessment — early on in the API development lifecycle
• penetration test — once an API is developed and published (testable).

There are also automated vulnerability testing tools that can be used to give an indication of vulnerabilities in web application designs.

4.3. Logging and alerting

Traditional logging, alerting and incident management practices also apply to APIs, along with additional considerations such as:

• correlating API requests with specific backend system activity and the resulting API responses to support end-to-end tracing
• identifying specific API requests from consumers to help resolve API consumer problems
• detecting events that may indicate a malicious attempt to access an API.

5. API security use case

Figures 22 and 23 illustrate a sequence of information exchange events and highlight where security controls are implemented.

5.1. High-level view

Figure 22 shows the high-level interaction of the actors and participant service providers in the use case of invoicing and paying ACC levies.

Detailed description of figure

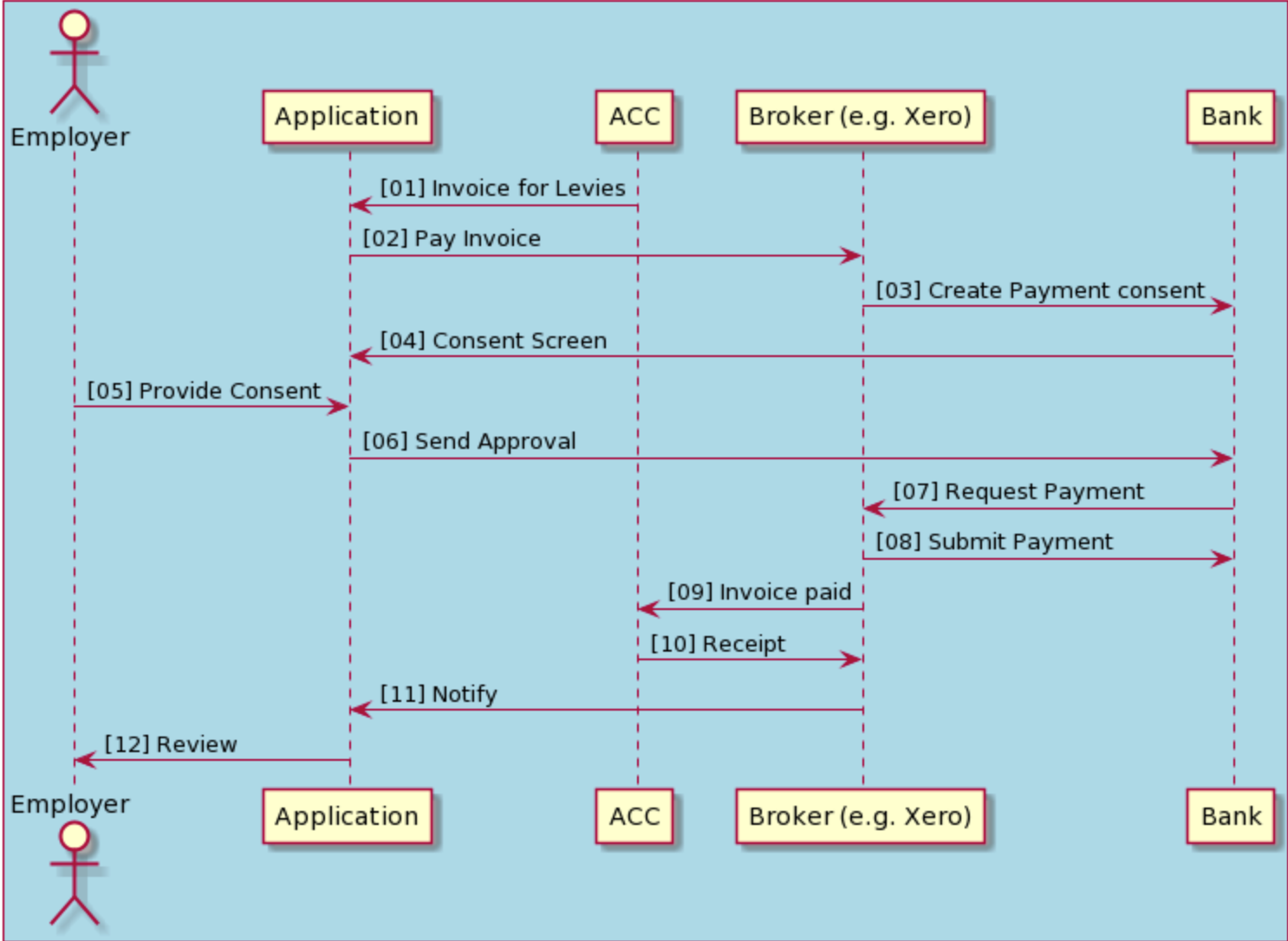

Figure 22 illustrates an API security use case high-level view using a Unified Modelling Language (UML) sequence diagram that shows interactions between different actors in the use case of invoicing and paying ACC levies.

The sequence is:

1. ACC presents invoice for levies to Application.
2. Application pays invoice to Broker (for example, Xero).
3. Broker creates payment consent to Bank.
4. Bank provides consent screen to Application.
5. Employer provides consent to Application.
6. Application sends approval to Bank.
7. Bank requests payment to Broker.
8. Broker submits payment to Bank.
9. Broker pays invoice to ACC.
10. ACC provides receipt to Broker.
11. Broker notifies Application.
12. Application provides review to Employer.

View larger image (PNG 204KB)

5.2. Detailed-level view

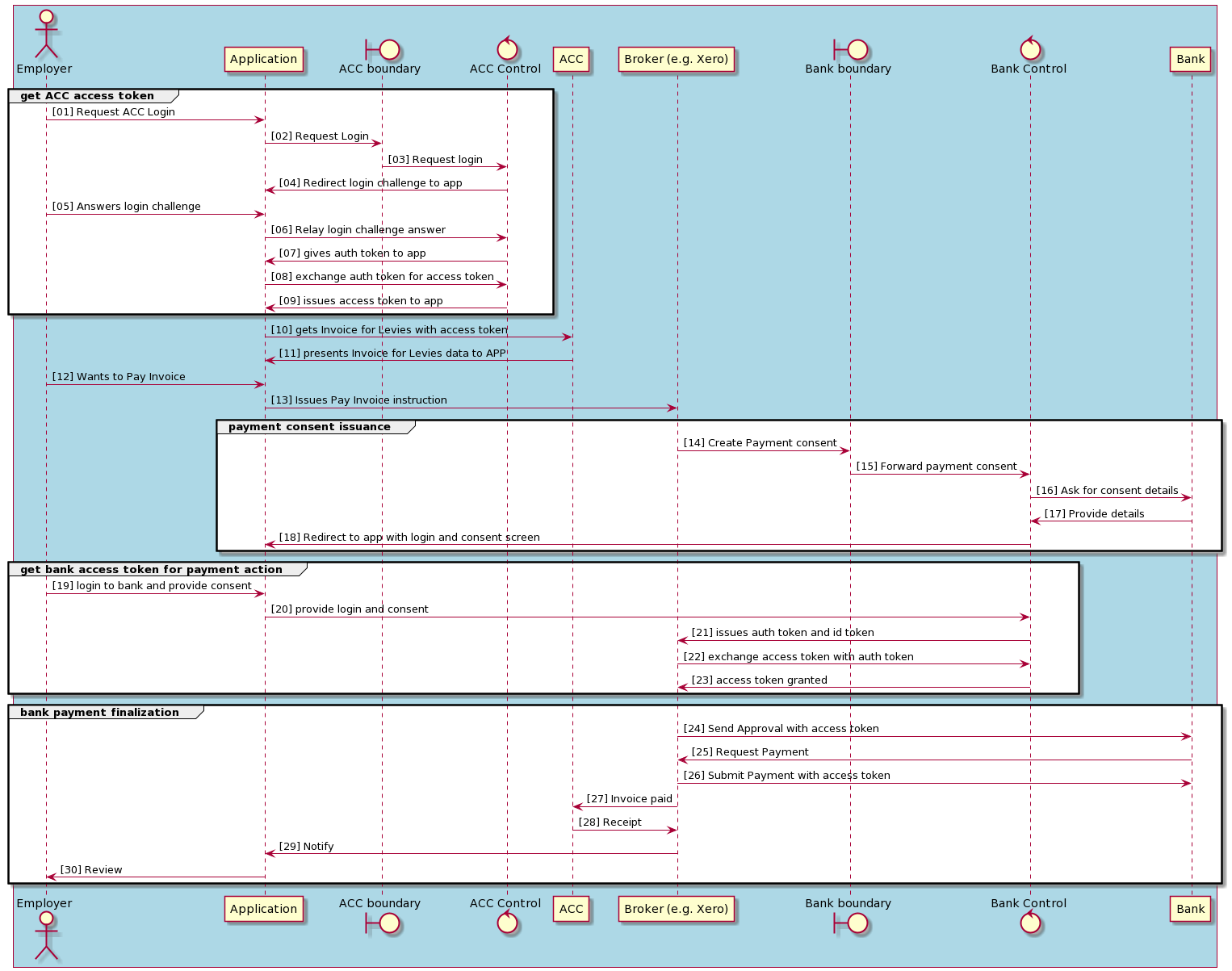

Figure 23 shows the detailed interaction of the actors and participant service providers.

Detailed description of figure

Figure 23 illustrates an API security use case detailed-level view using a Unified Modelling Language (UML) sequence diagram that shows interactions between different actors in the use case of invoicing and paying ACC levies.

Compared with figure 22, ACC also has an ACC control and an ACC boundary. The Bank has a Bank control and Bank boundary.

The diagram has 4 detailed sections:

Section 1 — get ACC access token

1. Employer requests ACC login to Application.
2. Application requests login to ACC boundary.
3. ACC boundary requests login to ACC control.
4. ACC control redirects login challenge to Application.
5. Employer answers login challenge to Application.
6. Application relays login challenge answer to ACC control.
7. ACC control gives auth token to Application.
8. Application exchanges auth token for access token to ACC control.
9. ACC control issues access token to application.
10. Application gets invoice for levies with access token to ACC.
11. ACC presents invoice for levies to Application.
12. Employer wants to pay invoice to Application.
13. Application issues pay invoice instruction to Broker (for example, Xero).

Section 2 — payment consent issuance

14. Broker creates payment consent to Bank boundary.
15. Bank boundary forwards payment consent to Bank control.
16. Bank control asks for consent details to Bank.
17. Bank provides details to Bank control.
18. Bank control redirects with login and consent screen to Application.

Section 3 — get access token for payment action

19. Employer logs in to bank and provides consent to Application.
20. Application provides login and consent to Bank control.
21. Bank control issues auth token and ID token to Broker.
22. Broker exchanges access token with auth token to Bank control.
23. Bank control grants access token to Broker.

Section 4 — bank payment finalisation

24. Broker sends approval with access token Bank.
25. Bank requests payment to Broker.
26. Broker submits payment with access token to Bank.
27. Broker advises invoice paid to ACC.
28. ACC provides receipt to Broker.
29. Broker notifies Application.
30. Application sends review to Employer.

View larger image (PNG 149KB)

6. Appendix A — Standards for securing RESTful APIs

Table 3 captures (current) security standards that should be part of any API security strategy, ordered by type.

Note the provisioning standards[Footnote 2] are included to complete this standards table. This enables it to be used by architects to select the most appropriate option.

7. Appendix B — Authentication

Find out more about different authentications used while implementing an API.

7.1. Anonymous authentication — Not recommended

Figure 24 shows an anonymous authentication model where the customer and the application they are using can gain access to backend API services without needing to authenticate in any way.

View larger image (PNG 21KB)

Anonymous authentication can be used when the risk associated with the API is negligible, for example, an API offering publicly available information. It can be used for internal APIs if the agency’s security policy allows.

The downside of this model is that it makes it difficult to gather effective analytics, and therefore to understand the implications of proposed changes to, and deprecation of, an API.

Although it is not recommended to use this model, it sometimes has to be included to support the scenario where a web application is making calls, on the home or login page, to a backend application server that stores the pages and the related JavaScripts. In this case it is the API gateway that provides the security, along with the due diligence required to ensure these pages and associated JavaScripts do not contain information that should be secured.

The anonymous authentication model should be protected against typical API vulnerabilities and threats, as listed on the OWASP web site. Typically, these relate to:

• throttling to prevent DoS attacks
• message analysis to block HTTP attacks and parameter attacks such as cross-site scripting, SQL injection, command injection and cross-site request forgery.

7.2. Username and password authentication (direct authentication) — Not recommended

In the direct authentication model, illustrated in figure 25, the user is authenticated via an identity store using username and password (or hash) credentials over secure communications.

Username and password authentication is suitable for development purposes, during training or the initial stages of development, because it reduces the barrier to accessing the API. It could also be used for internal APIs, if the agency’s security policy allows, and may be suitable for customers if the identity risk associated with the API is low.

Internal users would likely use an internal LDAP directory (for example, Active Directory (AD)) while external users, for example customers, would require a separate identity store. The API gateway could provide the authentication services and, for external facing APIs, also threat protection services.

API security is provided by the application (web) server acting as a trusted subsystem with TLS links to the backend API server. The application / web server invokes the backend and provides the required user ID information, which can be in the form of a session token.

View larger image (PNG 54KB)

This model can be easy to implement but has many limitations including:

• an identity store like LDAP is required along with a full registration process for all user types (for example, applications and application developers)
• it cannot leverage a federated authentication model, so no SSO, requiring re-presentation of username and password at every step
• passwords would be in clear text — if direct authentication is used, TLS would be required to secure all communications
• it is open to brute force attacks
• passwords have low entropy, have to be reset and managed, and are difficult to revoke at a granular level.

This model can be used for testing and development purposes but is not recommended for production APIs — API keys are preferred.

Refer to the Identification Management Standards for guidance on customer authentication. If considering using this model for internal users, preference would be a SSO solution using Kerberos.

• Identification Management Standards
• Kerberos — Wikipedia

7.3. API keys authentication — Recommended

API keys are a digital authentication mechanism, with the API key taking the form of a long string of generated characters.

API keys are usually unique and can be assigned to an application, developer or user. The usual practice is for an application developer to obtain a key for their application from the API provider and utilise the key within their application.

To obtain an API key, the developer must undergo a registration process with the API provider. The steps involved in the registration process are dependent on the level of risk associated with the API.

View larger image (PNG 31KB)

As illustrated in figure 26, at run time, the consuming application automatically passes the API key to the API every time it requests an API resource. The API gateway validates the API key against the API key store (which can be part of the API gateway functionality or provided by another secure device) before allowing the consuming application access to the requested API (or set of APIs) and backend resources.

This model is similar to the username and password model, but it is the API gateway that can be responsible for creating, managing the API key and API secret, and storing a copy in the API key store for validation, rather than redirecting to an identity store for policy validation and approval.

Username and password authorisation models can have high administration and response time overheads (relating to cryptographic functions). API keys are not linked to users and require no cryptographic functions. Like usernames and passwords, they come in pairs and are defined as:

• API key — public unique identifier — a 40+ random character string to authenticate the consuming application to the API
• API secret — private unique identifier — only known by the API gateway and used to validate the API key. The API secret in this model is not passed over the network.

API keys should be used wherever system-to-system authentication is needed (especially with a production level API). They are suitable for simple public APIs which do not need more complex authentication models. API keys should be used in preference to username and passwords because they are:

• more secure — greater entropy than passwords – random long string of characters
• speedier — API keys do not involve any hashing process, that is, the hashing process required for passwords.

However, the risk is that anyone with a copy of the API key can use it as though they were the legitimate consuming application. Hence, all communications should be over TLS, to protect the key in transit. The onus is on the application developer to properly protect their copy of the API key.

If the API key is embedded into the consuming application, it can be decompiled and extracted. If stored in plain text files they can be stolen and re-used for malicious purposes.

7.4. Certificates (mutual) authentication

When the API requires stronger authentication than offered solely by API keys, and the overhead of certificate management is warranted, use the certificate authentication model.

In the certificate (mutual) authentication model, illustrated in figure 27, internal and external parties are authenticated with each other. Both the consuming application and the API provider hold a digital certificate. The digital certificate can be trusted because it was issued by a mutually trusted certificate authority (CA). When the consuming application makes a request to the API, the server hosting the API presents its certificate to the consuming application. The application verifies the server’s certificate then sends its own certificate to the server. The server verifies the client certificate and mutual trust is achieved, allowing the consuming application to use the API.

View larger image (PNG 17KB)

Certificate authentication is:

• not recommended for customer authentication as there would be a high overhead in terms of certificate management
• recommended for consuming application to server (gateway) or API to backend communications (if needed).

For guidance, refer to the NZ Information Security Manual — Government Communications Security Bureau.

7.5. Developer authentication

Developer authentication will normally take place at the API portal when gaining access to APIs. The API portal will offer an authentication solution for developers to provide a username and password (possible 2 factor) login process (see figure 28) and a user store.

Further details for this are not provided in these guidelines, but a vendor API portal will normally provide their own authentication solution and user store, or it can integrate with an existing identity and access management system.

Detailed description of figure

Figure 28 shows an example of an API portal login page for developers — the image is of a screen or interface for developers to log into a developer resource centre by:

1. entering their username or email address in the first field
2. entering a password in the second field
3. ticking a box in the ‘I’m not a robot reCAPTCHA’ field.

View larger image (PNG 117KB)

Once the developer has logged into the API portal they can browse and discover the APIs available. API portals normally require the consuming application developer to:

• provide contact details like an email address
• register the application they are developing.

The API portal should provide registration services for the client application to use:

• API keys for basic authentication services and API monitoring
• OAuth services and the management of client ID and a client secrets (for applications)
• additional production authentication and authorisation service for example, basic, certificate.

7.6. Multi-factor authentication (MFA)

An application could use multi-factor authentication (MFA) to enhance other authentication techniques to mitigate identity risks. For example, by requesting a fingerprint from the customer in addition to their username and password (or API key).

Often smartphone capabilities can be leveraged to provide this additional factor, but other options are available, like smart cards or hardware tokens.

8. Appendix C — OAuth 2.0

OAuth 2.0 is a token-based authorisation framework and is defined and implemented using grant flow type patterns.

8.1. Grant flow types

There are 4 grant flow types supported by the OAuth 2.0. These define the different types of interaction a client application can perform to gain an ‘access token’ and thus access to the protected resource.

The different grant flow types are recommended for use in different situations for agencies implementing an API security framework. Recommendations are based on maximising the level of security for the APIs being exposed.

8.1.1. Authorisation code

Use for internal users or where the customer is the resource owner, your agency controls the resource server, but the authorisation server is not owned by the agency or is elsewhere within the organisation.

1. The authorisation server provides the authorisation code (grant) to the client application once the resource owner has approved the request.
2. The client application then uses this to request the access token.
3. The authorisation server validates the client application using the client ID and client secret. The client application has to store these credentials securely.
4. The client application authenticates to the authorisation server via its TLS certificate and call-back URL.

Useful if the API requires a customer of a client application to authorise access to a protected resource provided by the API.

Recommended to use

The most secure OAuth flow.

Use for public facing APIs for customer authorisation patterns. Use for pattern 1: internal use only. Use the state attribute to link request and response.

It is now recommended to include PKCE in this flow.

8.1.2. Implicit

Used when the client application resides on a device like a smartphone and cannot secure the credentials.

Only the access token is transmitted from the authorisation server to the client.

Not recommended to use

The least secure grant type.

If used, it should only be for information that is public and only for Government Electronic Tender Service (GETS).

8.1.3. Resource owner password credential

The resource owner’s username and password are used once as the authorisation grant to obtain an access token. The credentials are then discarded.

Not recommended to use

Use for customer authorisation pattern if authorisation code grant flow cannot be used. Use for pattern 1: internal use only to secure internal APIs that use active directory groups / Kerberos for authorisation and authentication if authorisation code grant flow is not available.

8.1.4. Client credentials

The client application is able to obtain access to the protected resource on its own behalf.

Recommended to use

Use for:

• pattern 6: authorising a consuming application from device to API
• pattern 5: authorising a system to system interaction (B2B) using signed tokens
• when the customer using the client, application is also the resource owner.

OAuth 2.0 introduced different grant types to provide organisations with the flexibility to support a variety of client application models. These specific models are not device driven — there is no specific device (for example, mobile) mapping to grant type; it is the level of risk an agency is prepared to support that needs to be defined to clarify which grant type should be selected.

For the application developer, the difference is in the infrastructure they need to provide, for example, the authorisation code grant flow type requires a managed server on which the client application runs.

The authorisation code is the most frequently used grant flow type as it is regarded as the most secure. It is covered in more depth in Appendix D. The implicit grant is the least secure and to quote from the OAuth RFC:

Implicit grants improve the responsiveness and efficiency of some clients (such as a client implemented as an in-browser application), since it reduces the number of round trips required to obtain an access token. However, this convenience should be weighed against the security implications of using implicit grants

These OAuth 2.0 grant flow types replace the 2-legged and 3-legged patterns used in OAuth 1.0.

There is now an RFC that has been defined that provides a device authorization grant flow (grant_type) that has been developed to address ‘browser less’ devices like a smart TVs, printers and uses another device to connect to the authorisation server to approve the request via a polling process.

9. Appendix D — OAuth 2.0 and OpenID Connect tokens and credentials

Find out how OAuth 2.0 and OpenID Connect and tokens and credentials are becoming a standard in access controls.

Access tokens are becoming a standard form of access control without the need for passing credentials. Anyone with an access token (bearer token) is permitted access to the resource being controlled, which makes tokens a target for stealing or copying. Hence it is important to keep the lifetime of tokens as short as realistically possible, depending on the type of resource being exposed and business risk appetite.

The OAuth framework (RFC 6749 and 6750) relies heavily on TLS for the security of the bearer token. The following RFCs offer additional integrity and confidentiality capability that can be applied to the bearer token (access token):

• JSON Web Token (JWT) profile for OAuth 2.0 Client Authentication and Authorization Grants (RFC 7523)
• Proof-of-Possession Key Semantics for JSON Web Tokens (JWTs) (RFC 7800).

There are 2 types of tokens, Opaque and JWTs. Both the access and refresh token can be presented in either form.

The Opaque tokens are produced by, and stored in, the authentication server. Each one has a specific task in the OAuth 2.0 framework.

The JWT tokens are produced and signed by the authorisation server but are not stored there. They are stored by the client application and when used are verified by the signature.

Table 4 provides a list of the main tokens and credentials that are used to provide authentication and authorisation services in the OAuth 2.0 framework.

9.1. OAuth scenario (authorisation code grant flow type)

This is a hypothetical scenario to demonstrate a key OAuth pattern using the authorisation code grant flow type. In this scenario Inland Revenue (IR — previously called IRD) has developed a set of APIs that can be used by professional accounting firms to offer additional services to their customers.

The assumption here is that IR have an API gateway, that offers:

• an API developer portal
• an OAuth authorisation server
• a resource server, exposing the APIs that can be called
• that IR are securing an API called ‘View IR Return’ with an authorisation code grant type.

9.1.1. Stage 1 client registration — Develop the application (third party)

The third party (in this case MyAccountantWebsite.com) develops a client application that will be exposed to their customers when they login to their website. It will allow customers of MyAccountantWebSite to authorise and set up delegated access for the MyAccountantWebSite application to view their IR returns, but without the customer having to provide their IR username and password to MyAccountantWebsite.

The application will use the APIs exposed by IR and is developed on an MyAccountantWebsite.com application (web) server that can securely store security credentials.

9.1.2. Stage 2 client registration — Register the (client) application

The developer needs to register as a user of the IR API portal. IR needs to verify that this person is allowed to register as a user. (This process is outside the scope of these guidelines and will vary depending on the sensitivity of the APIs exposed.)

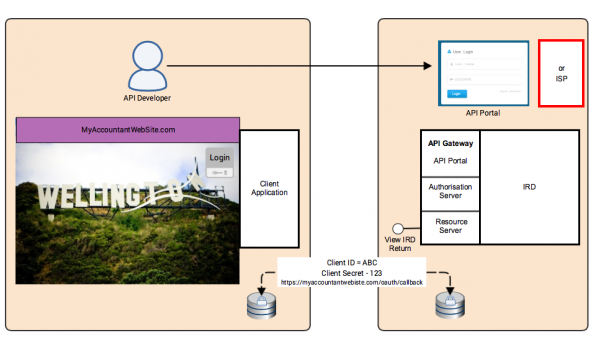

As illustrated in figure 29, the authentication of the developer can be via:

• IR’s internal client login services
• an external identity service provided (OpenID Connect or SAML based, or social network provider).

Once the developer has been approved and has been granted login credentials (username and password) they log onto the IR API portal and register their client application — this is carried out over a TLS secure link. The following information is provided:

• name of the application (by the developer)
• return URL (by the developer)
• client ID (by IR) — stored securely
• client secret (by IR) — stored securely.

The developer completes development of the client application on MyAccountantWebsite. The next steps detail how the MyAccountantWebsite customer uses the application.

View larger image (PNG 265KB)

9.1.3. Stage 3 client registration — Customer sets new service and authorises access

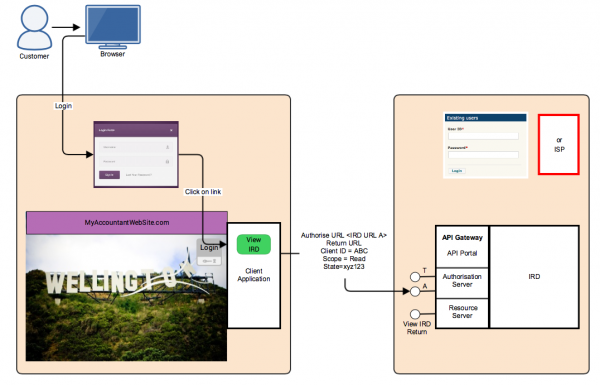

As illustrated in figure 30, the customer logs into MyAccountantWebsite from their browser and clicks on the IR button (view IR), which should allow the user access to information presented by the ‘view IR return’ API. As there is no current acess token stored for the client application to use, the user is redirected to the IR authorisation server ‘authorisation endpoint’ with the following information:

• IR URL A (authorisation endpoint URL)
• return URL (where the authorisation code will be sent)
• client ID = ABC (random long string that is used to identify the client application)
• scope = READ (defined by the application as to what the application can do)
• state = xyz123 (random long string that is used to mitigate man-in-the-middle attacks).

View larger image (PNG 291KB)

9.1.4. Stage 4 client registration — Authentication and approval by the resource owner

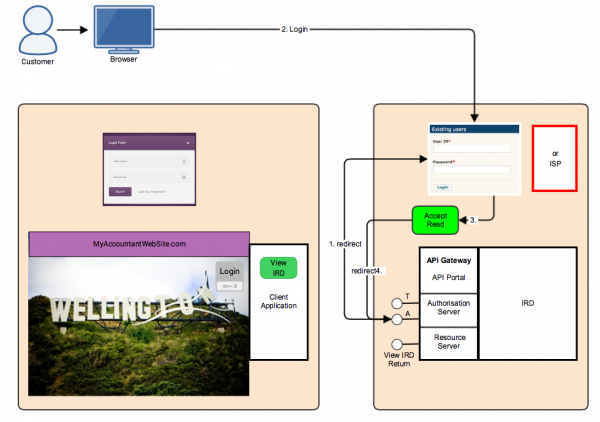

Figure 31 illustrates that, as the client application does not have an access token for this customer or a session set up with IR, the customer is redirected to the IR login page. The customer then logs into IR and will be presented with a request to accept the scopes (in this case Accept READ) for MyAccountantWebsite access.

View larger image (PNG 285KB)

9.1.5. Stage 5 client registration — Provide an authentication code

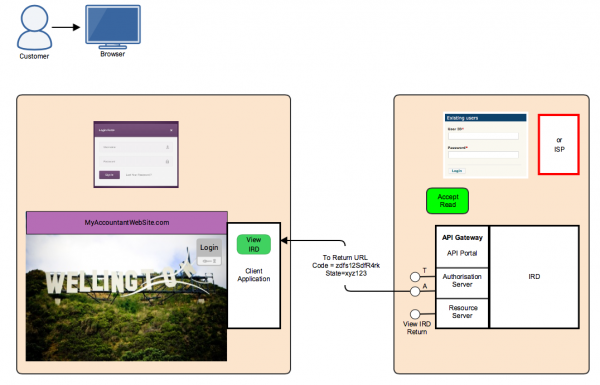

Figure 32 illustrates that with the customer’s acceptance of the scope, the authorisation server sends an authorisation code to the client application (with the same state parameter for the client to validate).

View larger image (PNG 286KB)

9.1.6. Stage 6 client registration — Authorisation code is sent to token endpoint

Figure 33 illustrates that to gain access to API resources, the client application sends the authorisation code to the token endpoint (T) on the authorisation server, along with the client ID and client secret it received when the client application was registered. This is used for authentication of the client application to the authorisation server.

View larger image (PNG 288KB)

9.1.7. Stage 7 client registration — The access token it provides

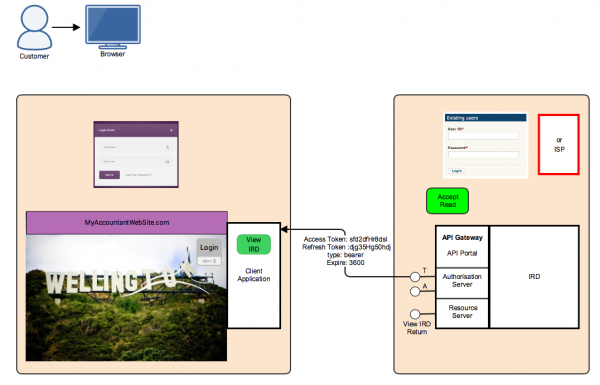

As illustrated in figure 34, the authorisation server provides an access token back to the client application, along with a refresh token (for later use) and an expiry time for the access token.

View larger image (PNG 288KB)

9.1.8. Stage 8 client registration — The client application uses the access token to access the resource

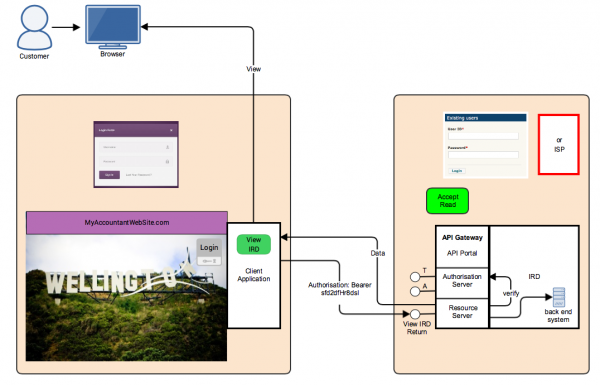

As illustrated in figure 35, the client application presents the access token to the resource server at IR, which is verified by the authorisation server and the requested data is returned from the IR backend system via the view IR return API to the MyAccountantWebsite client application.

View larger image (PNG 294KB)

This completes the OAuth scenario as the client application has retrieved, and can use, the resource data returned from the API.

10. Appendix E — Authorisation

To implement Attribute-based Access Control (ABAC), the current models defined use XACML.

XACML (developed by OASIS) provides a reference architecture, a request / response protocol and a policy language.

It is a highly distributed and loosely coupled architecture. It provides very useful generic definitions of the required components (services) that can be used to define any access control model.

It uses the following services to define the reference architecture:

• Policy Enforcement Point (PEP) — where the request to the resource is intercepted and policy applied (based on the decision made by the Policy Decision Point)
• Policy Decision Point (PDP) — this is the policy server to which the PEP sends the request for evaluation as to whether a user should or should not have access to a resource. The PDP has access to policy and can match the credentials and request against policy to make a permit / deny decision. It can also enforce policy-related obligations, for example, enhanced logging, notification and alerts, or re-routing to request additional authorisation process
• Policy Administration Point (PAP) — the interface where the policies are developed and defined
• Policy Information Point (PIP) — used to gather additional information about a user from identity stores or databases to provide additional attributes that are required by the PDP to validate the policy and apply the required outcome.

The links and flows between these services are detailed in figure 36.

Detailed description of figure

Figure 36 illustrates the services in an eXtensible Access control Markup Language (XACML) reference architecture.

It shows a user requesting a resource. The request is intercepted and policy is applied at the Policy Enforcement Point (PEP). The PEP requests an evaluation about whether or not the user can access the resource from the Policy Decision Point (PDP), which is also the Policy Administration Point (PAP) where policies are developed and accessed by an administrator.

The PDP / PAP requests more information about the user from a Policy Information Point (PIP) — this point gathers information from Lightweight Directory Access Protocol (LDAP) and Active Directory (AD) directories and databases.

View larger image (PNG 32KB)

XACML is generally perceived as being difficult to write policies in, but this is being addressed in 2 ways:

• OASIS is developing a request / response interface based on JSON and HTTP for XACML 3.0, version 1.0
• there is a JSON-based language called ALFA (Abbreviated Language for Authorization) that can be used to build XACML policies.

For XACML to support fine-grained access for APIs it requires a model such as illustrated in figure 37 (based on the scenario in Appendix D).

View larger image (PNG 38KB)

Figure 37 shows the following steps:

1. The access token is obtained during the request and exchange process.
2. The access token is presented during the resource request to the PEP, which also exposes the resource.
3. The access request is passed to the authorisation server.
4. The authorisation server verifies the access token and passes a XACML request to the PDP. This is where additional fine-grained access can be applied.
5. The PDP authorises the PEP to allow access to the backend service.

11. Appendix F — Security controls

Appendix F captures a number of key security controls that should be applied. It is recommended that organisations should apply the relevant RFC (or active draft documents) that relate to securing APIs.

11.1. Communications security (confidentiality) — Required

All communications to or from an API must be over TLS 1.3 or higher. Other versions of TLS and Secure Sockets Layer (SSL) should be disabled. This provides a recognised level of confidentiality that covers all communications between all components.

The consuming application must validate the TLS certificate chain when making requests to protected resources, including checking the Certificate Revocation List (CRL).

11.2. State (integrity)

State is also a parameter that can be used during the authorisation grant stage to provide a level of security to address possible man-in-the-middle attacks.

The state parameter is a string of random letters and numbers that is sent to the authorisation server by the client when requesting an authorisation code. It is sent back to the client with the authorisation code and should be verified by the client application to confirm the authenticity of the response — that it came from the authorisation server to which the request was sent.

11.3. Content encryption (confidentiality)

Use encryption if content needs only to be visible to specific consumer endpoints. However, if content only needs to be guaranteed untampered and / or from a specific source (for example, provider) then use content signing.

Content encryption enables all or part of a JavaScript Object Notation (JSON) payload to be readable only by the target consumer(s). This is useful where the content being carried by the API is sensitive, and the API request or response transits multiple stopping points. While TLS protects the payload in transit, it only applies to each point to point connection between components (for example, mobile app to API gateway). If transit components are not totally under the provider’s control, it can be worthwhile performing body encryption. It may be sensible to encrypt credit card details passed between consumer and provider backend systems.

It is also worth considering how much protection the information needs while at rest (for example, information received from consuming applications, caches) and whether some content should be stored encrypted.

Encryption is only worthwhile implementing when data sensitivity or data protection requirements drive it, as encryption is computationally intensive. It also makes it more difficult for protection mechanisms, such as API gateways, to validate and transform API content. When only the integrity of the content passed needs to be ensured, consider using content signing instead.

There are many existing ways of encrypting message content, built into code libraries and development tools. It is required that any content encryption adheres to the standard algorithms laid out in the New Zealand Information Security Manual (NZISM) (Hash-based Message Authentication Code (HMAC) algorithms).

11.4. Content signing (integrity)

Content signing is used to assure content integrity and proof of authorship. It can apply to the whole body of the JSON message or specific elements of that content, for example, credit card details. There are many approaches to content signing and the most appropriate approach is requirements dependent. Standard signing algorithms exist within coding libraries, and JWT has a body that can contain verifiable (signed) JSON fields. API gateways can also be configured to sign content objects in transit, if provided with an appropriate private key.

Signing has less of a computational overhead than encryption, but can still affect performance, so it is advisable that it be used only when and where needed.

For APIs, this is a developing area: there are 2 standards currently under development to address content signing:

• Message Authentication Code — OAuth 2.0 Message Authentication Code (MAC) tokens (draft)
• Proof of Possession — OAuth 2.0 Proof-of-Possession (PoP) Security Architecture (draft).

It is recommended that where bearer tokens are used, they should be signed using JSON Web Tokens (JWT) as defined in:

• JSON Web Token (JWT) RFC 7519
• JSON Web Signature (JWS) RFC 7515
• JSON Web Token (JWT) Profile for OAuth 2.0 Client Authentication and Authorization Grants RFC 7523.

11.5. Non-repudiation (integrity)

Non-repudiation covers the means to ensure that a consumer cannot deny making a request and, similarly, a provider cannot claim they did not send a response. To aid non-repudiation for APIs, it is important to ensure credentials are not shared between consumers and to perform comprehensive logging of API request / responses.

Digital signatures are useful for not just guaranteeing authenticity and integrity, but also supporting non-repudiation.

11.6. Availability and threat protection

Table 5 lists threat risk types and some recommended approaches to help mitigate these.

11.7. Token threat mitigation

Securing OAuth flows relies on the exchange of tokens between consuming applications and API backend servers. There is always the threat of these tokens being obtained illicitly, losing confidentiality and integrity of message content, or the integrity of the sender of the token. This risk also applies to the transferring of API keys.

Table 6 captures the main token threats and possible mitigation strategies.

API gateway capabilities can protect against many typical API vulnerabilities and threats. Typically, these relate to:

• throttling to prevent DoS attacks
• message analysis to block HTTP attacks — parameter attacks such as cross-site scripting, SQL injection, command injection and cross-site request forgery
• controlling egress of information via the API, aligned to set access permissions / policies.

As well as providing (if required) access control to API functionality.

12. Appendix G — Internet Engineering Task Force (IETF) RFCs relating to OAuth 2.0

13. Appendix H — RFCs in development

These RFCs are pertinent to this guideline but are under development as at May 2022:

14. Glossary of terms

Analytics

Analytics in the context of these guidelines is the capturing and reporting of API usage.

API (Application Programming Interface)

An API is a piece of software that provides a way for other disparate pieces of software (applications, systems) to talk to one another.

API catalogue

The API delivery component that lists the APIs offered, along with their interface specification and guidance on how to gain access and use the APIs.

API developer

The organisation (or person) who creates the API and maintains the interface specification for the API. An API developer creates and documents an agency’s APIs. API developers generally have a good understanding of an agency’s function.

API developer portal

The API delivery component that allows API providers to engage with, onboard, educate and manage application developers whether inside or outside the organisation. These management activities will generally include registration, documentation, analytics and so on.

API gateway

The API delivery component that allows API providers to offer APIs to the outside world. This component (physical or virtual) hosts the APIs ready for consumers to access. It provides an API provider with the ability to control who has access to their APIs by enforcing policies for access control. Some API gateways also offer additional capabilities.

API manager

The API delivery component that allows API providers to control an API’s visibility and behaviour. It is usually exposed as a UI / console to internal staff only, as it is seen as an administration component. It offers a variety of capabilities, including API registration and catalogue administration.

API provider

The organisation that provides the API to expose a resource (information or functionality) for consumers.

Application

The software behind the API that provides the business logic for the resource.

Application developer

Software developer or organisation that builds consuming applications that use the API. An application developer needs to be able to discover, understand and access your APIs. They can be internal to your agency, developers that work with trusted partners, developers from other agencies or developers from the private sector.

Consumers

Customers, consuming applications and application developers who use the API.

Consuming application

Any application (on any device) that consumes or uses an API.

Context

Context in these guidelines generally refers to request context. For example, a JWT (JSON WebToken) may contain information about the customer initiating an API request.

Customers

People (or organisations) that use the consuming applications to access the API resources the API provider is offering.

DELETE

One of the most common HTTP methods, DELETE is used to delete a resource specified by its URI.

Discovery

The ability for application developers to find resources and associated APIs to use in their consuming applications.

Interface specification

Provides technical information to the application developer community about the API. It includes information about how the API works, any access control features and any error conditions.

POST

One of the most common HTTP methods for retrieving from and sending data to a server, the POST method sends data to the server and creates a new resource. The resource it creates is subordinate to some other parent resource. When a new resource is POSTed to the parent, the API service will automatically associate the new resource by assigning it a new resource URI. In short, this method is used to create a new data entry.

Product manager

The product manager is usually a technical role. They understand an agencies API landscape and are owners of API management platforms.

Product owner

The product ownership function usually resides in a business area rather than technology. The role of the product owner is to understand the product that the agency is trying to deliver, shape and communicate the vision and delivery schedule for the product, represent the stakeholder and customer perspective, and to make decisions on the representation of the product in an API.

Publish

The act of releasing the interface specification and associated API to a location accessible by application developers.

PUT

One of the most common HTTP methods for retrieving from and sending data to a server, the PUT method is most often used to update an existing resource. If you want to update a specific resource (which comes with a specific URI), you can call the PUT method to that resource URI with the request body containing the complete new version of the resource you are trying to update.

Resource

The information or functionality exposed by the API.

State

State defines the point in time record of an in-flight transaction. Some systems maintain ‘user state’ for a period of time to enable a transaction to be continued from the point of last recorded state. APIs are usually, but not always, considered stateless.

Zero Trust Network Access (ZTNA)

A product or service that creates an identity- and context-based, logical access boundary around an application or set of applications. The applications are hidden from discovery, and access is restricted via a trust broker to a set of named entities. The broker verifies the identity, context and policy adherence of the specified participants before allowing access and prohibits lateral movement elsewhere in the network. This removes application assets from public visibility and significantly reduces the surface area for attack.

15. Glossary of acronyms

ABAC

Attribute-based Access Control

ACL

Access Control List

AD

Active Directory

AFLA

Abbreviated Language for Authorization

API

Application Programming Interface

CA

Certificate Authority

CIBA

Client Initiated Backchannel Authentication

COTS

Commercial off-the-shelf

CRL

Certificate Revocation List

DAC

Discretionary Access Control

DB

Database

DHE

Diffie-Hellman Ephemeral

DMZ

Demilitarized Zone

DoS

Denial of Service

DPoP

Proof-of-Possession mechanism

ECDHE

Elliptic Curve DHE

FAPI

Financial Grade API

FHIR

Fast Healthcare Interoperability Resources

FIDO U2F

FIDO Alliance Universal Second Factor

GETS

Government Electronic Tender Service

HEART

Health Relationship Trust

HMAC

Hash-based Message Authentication Code

HOTP

HMAC-based One-Time Password

HPP

HTTP Parameter Pollution

HTTP

Hyper Text Transfer Protocol

IETF

Internet Engineering Taskforce

IP

Internet Protocol

JSON

Javascript Object Notation

JWA

JSON Web Algorithms

JWE

JSON Web Encryption

JWK

JSON Web Key

JWS

JSON Web Signature

JWT

JSON Web Token

LDAP

Lightweight Directory Access Protocol

MAC

Message Authentication Code

MFA

Multi-factor Authentication

MTLS

Mutual Transport Layer Security

NZBN

New Zealand Business Number

NZISM

New Zealand Information Security Manual

OAuth

Open Authorization

OWASP

Open Web Application Security Project

PAP

Policy Administration Point

PDP

Policy Decision Point

PEP

Policy Enforcement Point

PIP

Policy Information Point

PKCE

Proof of Key for Code Exchange

PNZ

Payments New Zealand

RAML

REST API Modeling Language

RBAC

Roles-based Access Controls

REST

Representative State Transfer

RFC

Request for Comments

RO

Resource owner

RS

Resource server

SAML

Security Assertion Markup Language

SCIM

System for Cross-domain Identity Management

SEO

Search Engine Optimisation

SLA

Service Level Agreement

SOAP

Simple Object Access Protocol

SPML

Service Provisioning Markup Language

SQL

Structured Query Language

SSL

Secure Sockets Layer

SSO

Single Sign-On

STS

Security Token Service

TLS

Transport Layer Security (superseded SSL)

TOTP

Time-based One-time Password

UMA

User-Managed Access

UI

User interface

URI

Uniform Resource Identifier

URL

Uniform Resource Locator

URN

Uniform Resource Name

WADL

Web API Description Language

XACML

eXtensible Access Control Markup Language

XML

eXtensible Markup Language

ZT

Zero Trust

16. Further reading

• HTTP 1.1 Standards RFCs — IETF:
  • RFC7230 HTTP/1.1: Message Syntax and Routing
  • RFC7231 HTTP/1.1: Semantics and Content
  • RFC7232 HTTP/1.1: Conditional Requests
  • RFC7233 HTTP/1.1: Range Requests
  • RFC7234 HTTP/1.1: Caching
  • RFC7235 HTTP/1.1: Authentication
  • RFC7236 HTTP/1.1: Authentication Scheme Registrations
  • RFC7237 HTTP/1.1: Method Registrations
• NZ Protective Security — Protective Security Requirement (PSR)
• OpenAPI Specification — GitHub
• OWASP API Security Project — OWASP
• OWASP REST Security — REST Security Cheat Sheet
• OWASP Secure Coding Principles — OWASP
• OWASP Top Ten Project — OWASP
• Reserved JavaScript Keywords — W3Schools
• REST API Resource Modelling — Thoughtworks
• Strategy for a Digital Public Service
• Using HTTP Methods for RESTful Services — REST API Tutorial
